XAG APC1 Auto Pilot Agricultural machinery self-driving instrument (no tablet included)
Overview
Introducing the
XAG APC1 Auto Pilot Console
Navigate with Precision
Autonomous, precise operation | Cost-effective performance | Easy to operate
Autonomous, precise operation

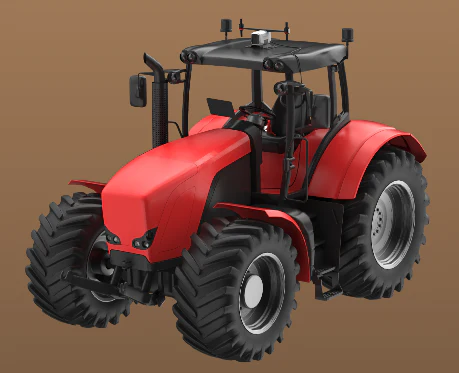

RTK navigation technology enables agricultural vehicles to operate automatically in 2.5 cm accuracy.
Cost-effective Performance
Auto driving on designated straight path that avoids skip and overlap to save time and reduce cost
Easy to Operate
Select target area and pre-program route on mobile app to enable hands-free operation with ease
One System for Multiple Machines, Never been Easier
Want to know more about The XAG APC1 AutoPilot Console?
Click the "More Info" tab above
More Info
Specifications
XAG APC1 AutoPilot Console Specs
Console
Steering Control
Automatic
On-Board Processor Model
MT6873
On-Board Computer RAM
6 GB
On-Board Computer Hard Drive
64 GB
On-Board Computer OS and Software Version
Android 7.0
On-Board Computer Display Size and Resolution
6.5 inches, 2400x1080
On-Board Computer Port
Type-C
On-Board Computer Data I/O Protocol
Wi-Fi protocol
Satellite Receiver Type and Bands
Multi-band navigational receiver,
BDS B1/B2 GPS L1/L2 GLONASS L1/L2 Galileo E1/E5b*
Satellite Receiver Mainboard Firmware Version
R2.00Build20095
Satellite Receiver Channels
432 channels
Satellite Receiver Port
UART
Satellite Receiver Differential System
RTCMV2, RTCMV3
Satellite Receiver Update Rate
5 Hz
Satellite Receiver Antenna
Helix antenna
Steering Controller Mainboard Firmware Version
1.0.0.8
Hydraulic Valve/Motor Model
SW-ED10
Fixed Base Station Signal Coverage
30 km
Radio Transmitter Frequency
2400 MHz
Power of Fixed Base Station Radio Transmitter
6 W
Integration Components
Satellite antennas, receiver & radio station;

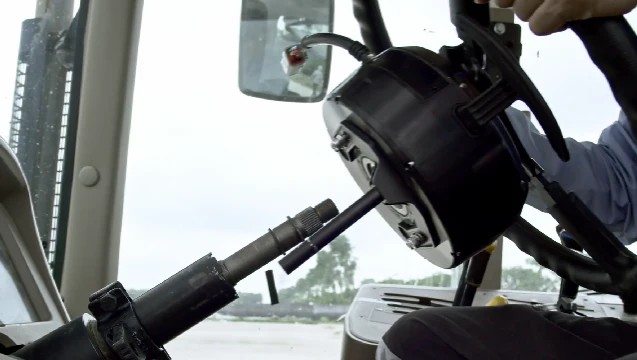

electric steering wheel & controller
Dimensions
220*616*267 mm
Positioning Accuracy
Horizontal: 1 cm+1 ppm
Vertical: 1.5 cm+1 ppm
Operating Accuracy
±2.5 cm
Power Input
DC12 V ~ 24 V
Satellite System
Beidou/GPS/GLONASS
Communications Protocol
Wi-Fi, Cloud connection
Wi-Fi Frequency
2.4/5.8 GHz
Break-Point Endurance
10 min
Operating Temperature
-20℃ ~50℃
Storage Temperature
-40℃ ~70℃
Radio Transmit Power of AutoPilot Console
3 W
Operating Speed Range of Agricultural Machinery
0.3 km/h~13 km/h
Motor
Dimensions
220*210*87 mm
Steering Wheel Diameter
410 mm
Rated Voltage
12 V
Maximum Voltage
28 V
Isolation Voltage
500 VDC
Torque
Rated: 10 NM
Maximum: 20 NM
